Single-Door Wiegand Access
Project scenario

What does this solution solve?

A door is usually not a wire, but a multi-functional combination of card reader, electric lock, door sensor, REX, fire alarm release, doorbell/intercom, etc. The comprehensive line value is to reduce the number of lines pulled on the jobsite and reduce identification errors. Confirm the equipment and boundaries first, then determine the cable path, recommended wires, wiring key points, construction checks and reference materials to reduce wrong cable selection and callbacks.

Visual Plan Map the system first, then choose the cable

Start with the system layout, then confirm the cable specification. You can check equipment, paths, termination, testing and acceptance issues together before ordering or requesting a quote.

System Layout

Relationship from device to cable path

This diagram shows equipment relationships, cable paths, test points, and maintenance boundaries; actual construction is subject to equipment manuals, local codes, project drawings, and licensed professional judgment.

Small shop/office single-door Wiegand access control integrated line system wiring and construction logic diagram
This system diagram shows equipment relationships, cable paths, test points, residential/commercial selection logic, and service boundaries. Actual installation must follow equipment manuals, local code, project drawings, and AHJ requirements.
01 Confirm System Equipment

Access controller, reader/keypad, electric strike or maglock, door contact, REX button/sensor, power supply, FACP release relay.

02 Plan the Cable Route

From the controller/power box to the door, the reader, lock power, door contact, and REX are connected in groups; the fire alarm release interface is connected according to the requirements of the access control power supply and fire alarm system.

03 Match the Recommended Cable

Access Control Composite: 18/4 lock power + 22/6 or 22/3PR reader + 22/2 door contact + 22/4 REX; CMR/CL3R or CMP/CL3P as per installation space.

04 Check Wiring Priorities

Lock power must check the current and voltage drop; fail-safe/fail-secure and fire alarm release logic must be in accordance with local requirements; reader data line shielding should be handled according to the manufacturer manual.

1

How the System Works

The operation logic of the Wiegand access control integrated line for a small shop/office single-door is: the head-end device provides power supply, control, communication or supervision, the cable sends the signal to the field device, and finally completes the closed loop through test points, tags and records. From the controller/power box to the door, the reader, lock power, door contact, and REX are connected in groups; the fire alarm release interface is connected according to the requirements of the access control power supply and fire alarm system.

2

End-User and Project Selection Logic

End users focus on confirming door and window magnets, PIR, keypads and alarm groupings; electricians and project engineers also need to confirm electric lock current, OSDP/RS-485, fire alarm release, shielding and UL/AHJ boundaries.

3

Installation and Commissioning Logic

Construction focuses on home-run vs. daisy-chain trade-offs, EOL/SEOL/DEOL locations, shield grounding, lock power drop, fail-safe/fail-secure, fire alarm release, door status monitoring, labeling and debugging records. When debugging, conduct continuity/short circuit check first, then conduct voltage, voltage drop, communication or functional tests, and record the results.

4

Troubleshooting and Compliance Boundaries

Users can check door contacts, keypads, power status and labels; refer to security/electricians when it comes to power supply to electric locks, fire alarm releases, commercial access control, OSDP bus or outdoor surges.

System Equipment

Access controller, reader/keypad, electric strike or maglock, door contact, REX button/sensor, power supply, FACP release relay.

Cable Route

From the controller/power box to the door, the reader, lock power, door contact, and REX are connected in groups; the fire alarm release interface is connected according to the requirements of the access control power supply and fire alarm system.

Recommended Cable

Access Control Composite: 18/4 lock power + 22/6 or 22/3PR reader + 22/2 door contact + 22/4 REX; CMR/CL3R or CMP/CL3P as per installation space.

Wiring Notes

Lock power must check the current and voltage drop; fail-safe/fail-secure and fire alarm release logic must be in accordance with local requirements; reader data line shielding should be handled according to the manufacturer manual.

Project Note

This guide supports product selection and project communication. It does not replace NEC/NFPA requirements, manufacturer manuals, project drawings, AHJ direction, or licensed electrician/contractor judgment. Always verify jacket markings, listing documents, equipment terminals, and local requirements before installation.

Solution Details

Full Project Context and System Boundaries

Small shop/office single-door Wiegand access control integrated line plan details visual
Put field devices, cable paths, recommended wires, and maintenance points into the same visual to understand the system before proceeding to selection.
System Relationship Diagram
System Relationship Diagram Put field devices, cable paths, recommended wires, and maintenance points into the same visual to understand the system before proceeding to selection.

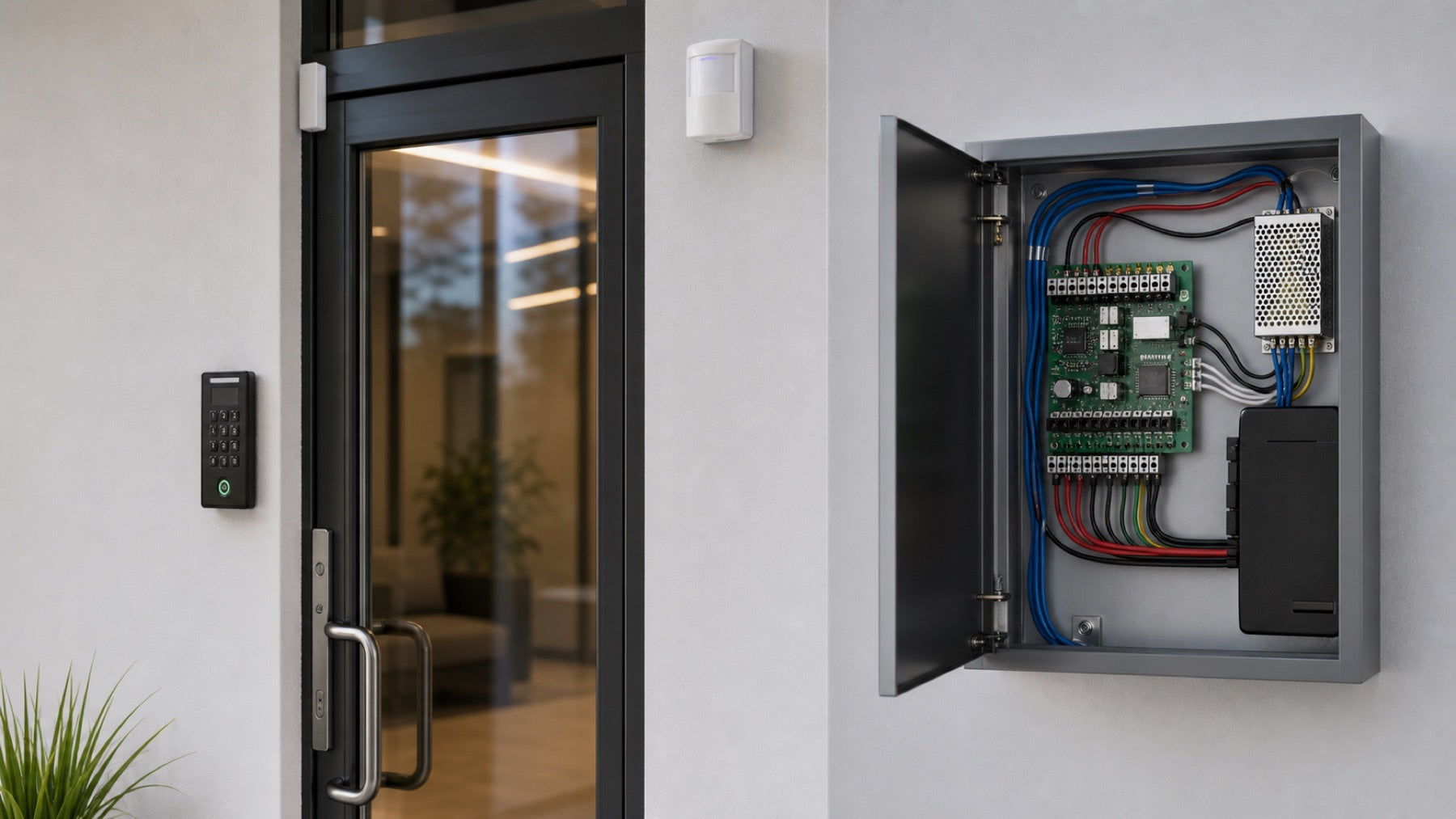

Jobjobsite and Cable Route
Jobjobsite and Cable Route A door is usually not a wire, but a multi-functional combination of card reader, electric lock, door sensor, REX, fire alarm release, doorbell/intercom, etc. The comprehensive line value is to reduce the number of lines pulled on the jobsite and reduce identification errors.
Define the System Boundary
Define the System Boundary Put the Access controller, reader/keypad, electric strike or maglock, door contact, REX. into the same relationship diagram, confirm the equipment first, and then confirm the wire.
Confirm the cable specification, installation path, product documents, and local codes before ordering or installation.
System Diagram

Visual Guide from Equipment to Cable Route

Small shop/office single-door Wiegand access control integrated line system diagram visual
Use diagrams to first identify head-end devices, field devices, cable paths, test points, and maintenance boundaries.
System Connection Diagram
System Connection Diagram Use diagrams to first identify head-end devices, field devices, cable paths, test points, and maintenance boundaries.
Field Route Mapped to Diagram Nodes
Field Route Mapped to Diagram Nodes From the controller/power box to the door, the reader, lock power, door contact, and REX are connected in groups; the fire alarm release interface is connected according to the requirements of the access control power supply and fire alarm system.
Service Points and Risk Boundaries
Service Points and Risk Boundaries Each line should be able to explain the starting point, end point, purpose, specifications, termination method and post-inspection location.
Confirm the cable specification, installation path, product documents, and local codes before ordering or installation.
Cable Selection

Select cable by specification, environment and risk

Small shop/office single-door Wiegand access control integrated wire cable selection visual
Check Access Control Composite before selecting: 18/4 lock power + 22/6 or 22/3PR reader + 22/2 door contact + 22/4.
Cable and Product Entry
Cable and Product Entry Check Access Control Composite before selecting: 18/4 lock power + 22/6 or 22/3PR reader + 22/2 door contact + 22/4.
Route Drives the Spec
Route Drives the Spec Wire gauge, conductor count, jacket rating, shielding structure and color must be determined along with the system path.
Verify the Install Environment
Verify the Install Environment In-wall, ceiling, outdoor, underground, and wet-location, equipment boxes and commercial spaces have different wire requirements.
1. Overview of recommended wires
This case recommends: Access Control Composite: 18/4 lock power + 22/6 or 22/3PR reader + 22/2 door contact + 22/4 REX; CMR/CL3R or CMP/CL3P according to the installation space. Selection should also consider the number of devices, path distance, voltage/signal, installation environment, future expansion and compliance boundaries. 22/2 is suitable for door and window magnets, 22/4 is suitable for PIR, glass break, keypad and spare, 18/2/18/4 is suitable for siren, aux power or short-distance lock power supply; single door comprehensive line is available 18/4 lock + 22/6 reader + 22/2 contact + 22/4 REX, OSDP is more suitable for power pair + shielded twisted pair. 2. Specification selection table
- 22/2: door and window magnets, simple alarm zone. - 22/4: PIR, glass breakage, keypad, backup point. - 18/2/18/4: Siren, aux power, short-distance electric locks or large current low-voltage equipment. - 22/6 shielded: Traditional Wiegand reader. - 18/2 power + shielded twisted pair: OSDP/RS-485 reader professional direction. 3. Conductor and conductor count logic
The brand advantage of VOLTIC STONE is that it uses pure copper conductors and does not reduce specifications. The value of true-gauge copper is not a marketing slogan, but more stable termination, more controllable voltage drop, more consistent wire drawing and stripping experience, and easier jacket markings and specifications easier to verify by project personnel. More conductors are not necessarily more professional, but insufficient conductors will definitely lead to callbacks. When selecting, you should first list all the terminals required by the current equipment, plus at least one or two for future spares. Professional projects should also be reserved according to the drawings. 4. Jacket rating and installation space
The same wire gauge may require different jackets and listing levels in different spaces. The requirements are different for ordinary wall, riser, plenum, outdoor, wet area, direct burial, underground pipes, mechanical space, and ceiling return air space. Don't just look at the AWG and conductor count, but also check whether the cable jacket identification, packaging label, datasheet, listing document and installation environment are consistent. 5. Colors and labels
Color is an aid, not the specification itself. Red, white, green, yellow, blue, brown, black, orange, purple and other colors are commonly used for low-voltage cables to help terminal identification; tracer wire colors are often used according to APWA habits to assist in identifying underground facilities; lighting dimming lines are often purple/gray or purple/pink for identification; red sheaths are common for fire alarm cables. However, wiring cannot be based solely on color during construction, but must be based on terminal markings, drawings and equipment manuals. 6. Length and packaging recommendations
End users often focus on lengths such as 50ft, 100ft, 250ft that are easy to purchase and handle; electricians, contractors and distributors, supply partners are more concerned about 500ft, 1000ft, reel packaging, sequential length markings, jacket marking, batch numbers and outer box labels. When purchasing, a reasonable margin should be added based on the actual path, and the color, length, and use should be recorded on the project label. 7. It is not recommended to choose this way
- Do not substitute regular indoor wire for wire requiring direct burial, wet location, UV or plenum/riser. - Do not use low-voltage control wires for 120V or other line voltage supplies. - Do not write security cable as fire alarm cable unless the actual cable jacket marking and certificate clearly support it. - Do not promote ordinary multi-conductor cable as OSDP/RS-485 dedicated cable unless there are truly shielded twisted pairs and appropriate construction. - Do not mistake Sprinkler Wire for Tracer Wire, and do not mistake Tracer Wire for valve control wire. - Do not write strong promises such as UL Listed, FPLP, CMP, HDD rated, OSDP certified, etc. without a certificate. 8. Product verification before placing an order
After entering the corresponding Product Line, first check the wire gauge / conductor count, color, length, jacket rating, shielding structure, cable jacket identification and packaging information. Understand the system first, then choose wire gauge, color, length and quantity; if the project conditions are uncertain, you can submit photos of the equipment, distance, environment and usage for confirmation. 9. Turn selection into purchasing decision
Product collections, single products, specification sheets, FAQs, contact us and solution customization forms need to be connected to each other. After understanding the system logic, you can enter the product page to select the color and length; if you are not sure, enter the solution customization form to submit the device photo, distance and usage. This can reduce the cost of mispurchases, returns, callbacks and later inspections. 10. Order review list
- Verify that the AWG, conductor count, color, and jacket rating in the product title match the actual item. - Confirm that there is enough margin in length. Do not buy based on straight-line distance only for long distances or multi-turn paths. - Confirm whether the wire is power supply, control, communication, alarm supervision, positioning signal, or multiple wire combinations combined in one jacket. - Determine if waterproof connectors, labels, junction boxes, access points, ground rods, terminals, heat shrink tubing or test tools are required. - Confirm that the listing terminology, jacket rating, shielding structure and installation environment are consistent, and do not mix wires with similar appearances across systems. - Save orders, equipment models, terminal photos and cable path records to facilitate future repurchases and support.
Installation Checklist

Start-up, termination, testing and delivery verification

Small shop/office single-door Wiegand access control integrated line construction verification visual
Take photos, mark, cut off power, and check terminals before starting work; keep test records and cable paths after completion.
Before and After Installation
Before and After Installation Take photos, mark, cut off power, and check terminals before starting work; keep test records and cable paths after completion.
Test Against the System Diagram
Test Against the System Diagram Continuity, short circuit, voltage, voltage drop, communication, function and recording are completed one by one according to the path.
Turnover and Long-Term Service
Turnover and Long-Term Service Save device models, cable numbers, connector locations, test results and repurchase specifications to reduce subsequent callbacks.
Confirm the cable specification, installation path, product documents, and local codes before ordering or installation.
