VOLTIC STONE Dog Fence Wire A boundary signal loop for wired in-ground pet containment systems, not an livestock electric fence wire, nor an ordinary tracer wire. Before construction, confirm the transmitter manual, bus length, wire gauge terminals, boundary width, underground facilities and training procedures.
The typical suburban home wants to keep dogs in the front, side and back yards, but doesn't want to build a new physical fence. The system starts from the transmitter in the garage or basement, passes through the twisted pair cancellation section to the yard boundary, forms a complete closed loop along the inside of the property line, and then returns to the transmitter.

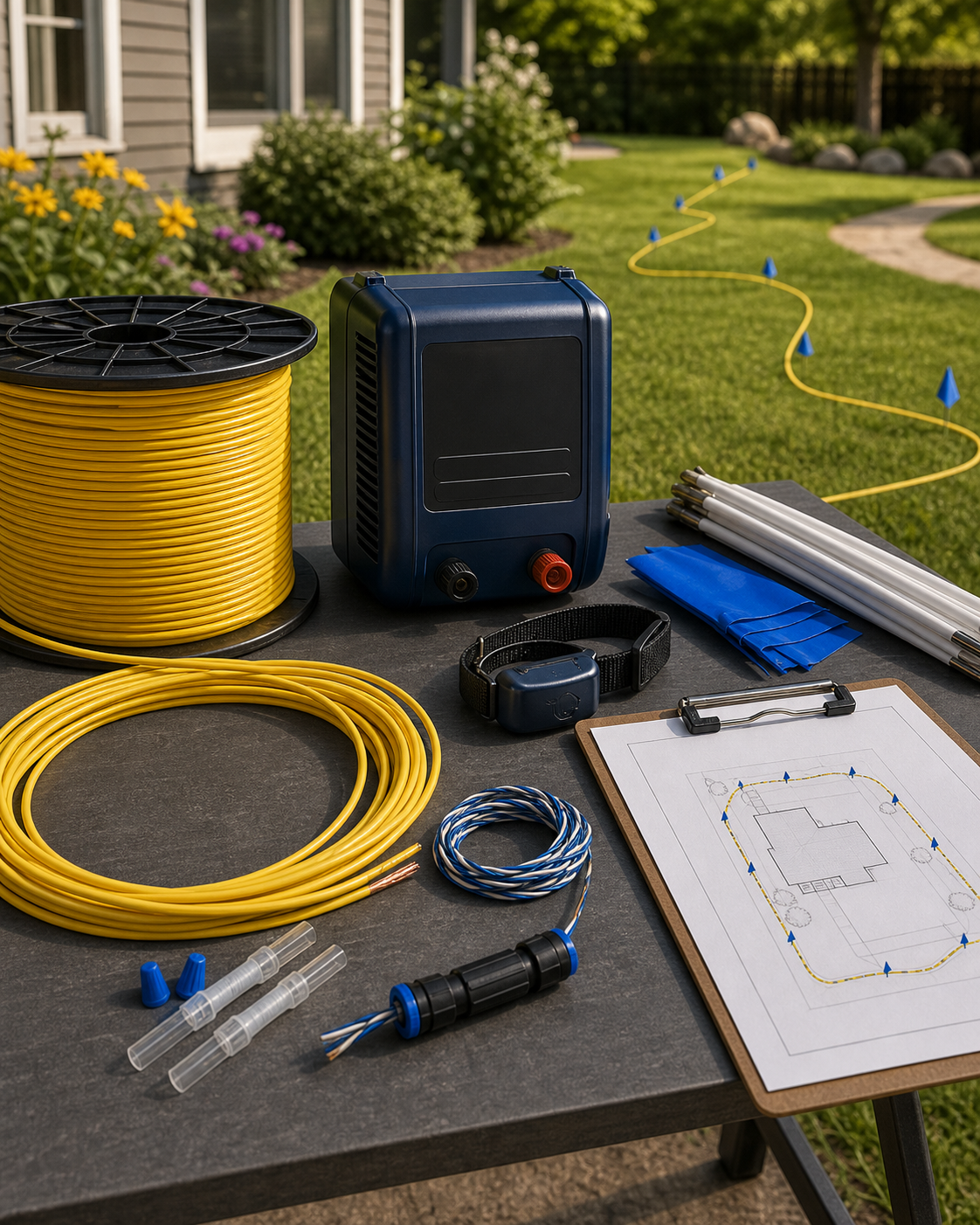

Fence transmitter, receiver collar, training flags, 14 AWG solid copper dog fence boundary wire, twisted lead-in wire, waterproof splice kits, PVC sleeve or driveway expansion joint, landscape staples, basic continuity tester.
After exiting the transmitter, two sections of the same circuit are first twisted to form a signal-free channel, which passes through the wall to the yard boundary; then a single boundary wire is routed along the inside of the front yard, side yard, and backyard, bypassing public sidewalks, driveways, gardens, and neighbor areas, and finally returns to the transmitter to form a closed loop.

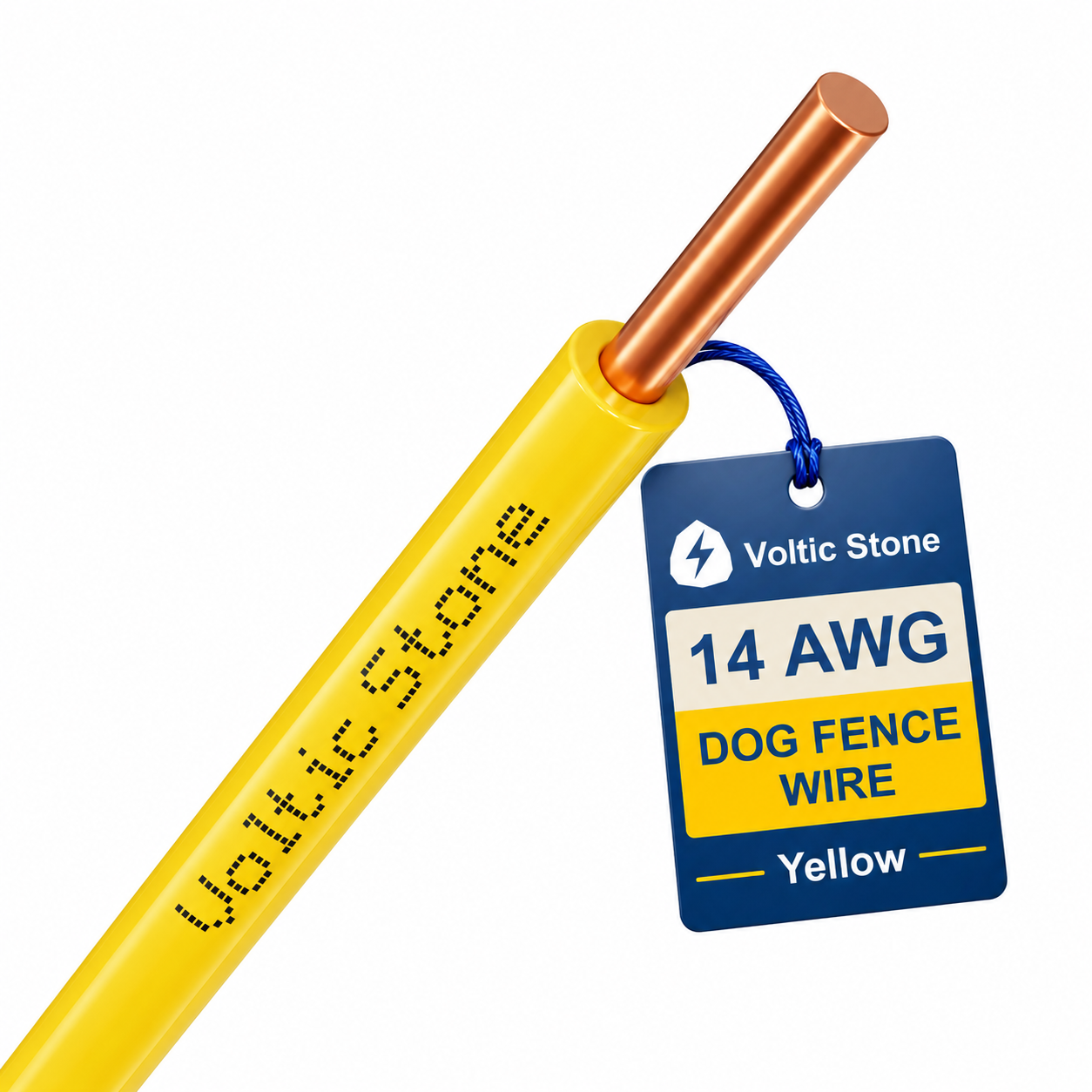

14 AWG Dog Fence Boundary Wire, solid bare copper conductor, PE direct burial / UV resistant outdoor jacket, yellow color; 1000 FT fits most 1/2-1 acre homes, 500 FT for small yards or repairs, 2000FT for large lots and long routes.
First lay the wires on the ground and open the system to test the trigger point of the collar; make rounded corners instead of right-angled fold lines; avoid long distances parallel to underground wires, communication lines or neighbor dog fence wire, and try to make them 90° when they must cross; use waterproof gel-filled splice for all joints; shallow burial is usually controlled to 1-3 inches, and test records are kept.
This solution is used for product selection, system understanding and installation communication; actual construction must be based on the transmitter manual, collar training instructions, local excavation rules, property line, HOA requirements and professional judgment. In-ground dog fence systems are not physical barriers and cannot promise 100% containment.
Dogs are only expected to be in the backyard and not in the front yard, driveway or side gate. The system can make a U-shaped or rectangular double loop along the backyard fence, or it can fix the boundary line to a wooden fence, chain link fence or existing fence, focusing on the spacing between two parallel lines, channel offset and joint waterproofing.
Fence transmitter, 14 AWG dog fence boundary wire, twisted cancellation section, wood fence / chain link fence mounting clips, waterproof splices, training flags, receiver collar, PVC sleeve, wire locator or continuity tester.
Use a twisted pair offset section from the transmitter to the backyard entrance; once you reach the backyard, one wire runs along the bottom of the fence or inside the ground, and another wire returns along the same path but keeping the spacing, or is fixed separately along the fence top/bottom, and finally back to the transmitter. Use protective pipes or gap paths when crossing gates, driveways or patios, and provide serviceable joints at both ends.
14 AWG solid copper Dog Fence Boundary Wire suitable for fence fixing, stone soil, surface testing and long-term installation in large yards; the yellow jacket is easy to identify during testing. After being fixed to the fence, clips, UV-rated ties or staples can be used to avoid pulling it too tight.
Two parallel wires that are too close together will cancel out the signal. If the backyard is too narrow, the route must be redesigned. A full collar test must be performed when it is fixed near a wire grid or metal fence. The joints on both sides of the gate must be waterproof and have a margin for repair. The wire must not be cut by door hinges, lawn mowers, trimmers or vehicle tires. After completion, train the pet segment by segment according to the position of the training flag.
Double loop and twisted pair cancellation are not the same thing. A double loop requires the two wires to be spaced far enough apart to form a discernible boundary; the twisted pair segments are used to cancel the signal, allowing dogs to pass safely. The jobsite distance, fence material, door position and transmitter capability are subject to the system manual and test results.
No. The boundary line transmits the transmitter signal, and the receiver collar approaches the signal band to remind or correct according to the system settings. The wire itself is not livestock electric fence wire.
14 AWG is thicker, has lower resistance, better tensile and cutting resistance, and is more suitable for large yards, stone soil, fence fixing and long-term installation. 20AWG is commonly found in starter sets and is less expensive but easier to break.
The boundary width of an electronic fence is affected by the transmitter, total wire length, route, metal interference and wire spacing. Testing on the surface first can confirm the trigger position of the collar, channel offset and dead zone, and then burying it shallowly can reduce callbacks.
Yes, but usually with a double loop or special return route. There must be sufficient distance between the two lines, and the double loop cannot be mistakenly made into a twisted pair cancellation section.
