System layout
Each category is a complete plan, not a list of cards
The market plan overview is displayed in sections: one side talks about the project background, key points of the plan, recommended wires and applicable scenarios, and the other side displays the corresponding visuals. Each section can enter the independent system solution page to continue expanding.
HVAC and smart thermostat wiring system
Thermo control wires are not a single SKU but are low-voltage control wires found in residential HVAC, smart thermostats, doorbells, and light commercial control systems. Sizing typically begins with C-Wire, heat pumps, multi-stage systems, and legacy wire replacement issues, which require an understanding of terminals, conductor counts, and future reservations.
For ordinary smart thermostat upgrades, first confirm the R, C, W, Y, G and other terminals; for common C-Wire upgrades, it is recommended to reserve more conductors for multi-stage, heat pump or future expansion. The page will continue to remind: Low-voltage thermostat wires cannot replace 120V line voltage, nor can they automatically cover all outdoor, direct burial or plenum scenarios.
Recommended Cable
18/2, 18/5, 18/8 Thermostat Wire; confirm CMR/CL2R, color, length and cable jacket identification by item.
Applicable scenarios
Smart Thermostat, Heat Pump, Multi-Zone HVAC, Doorbell Low Voltage Power, Light Commercial DDC Controls and Repair Rewiring.

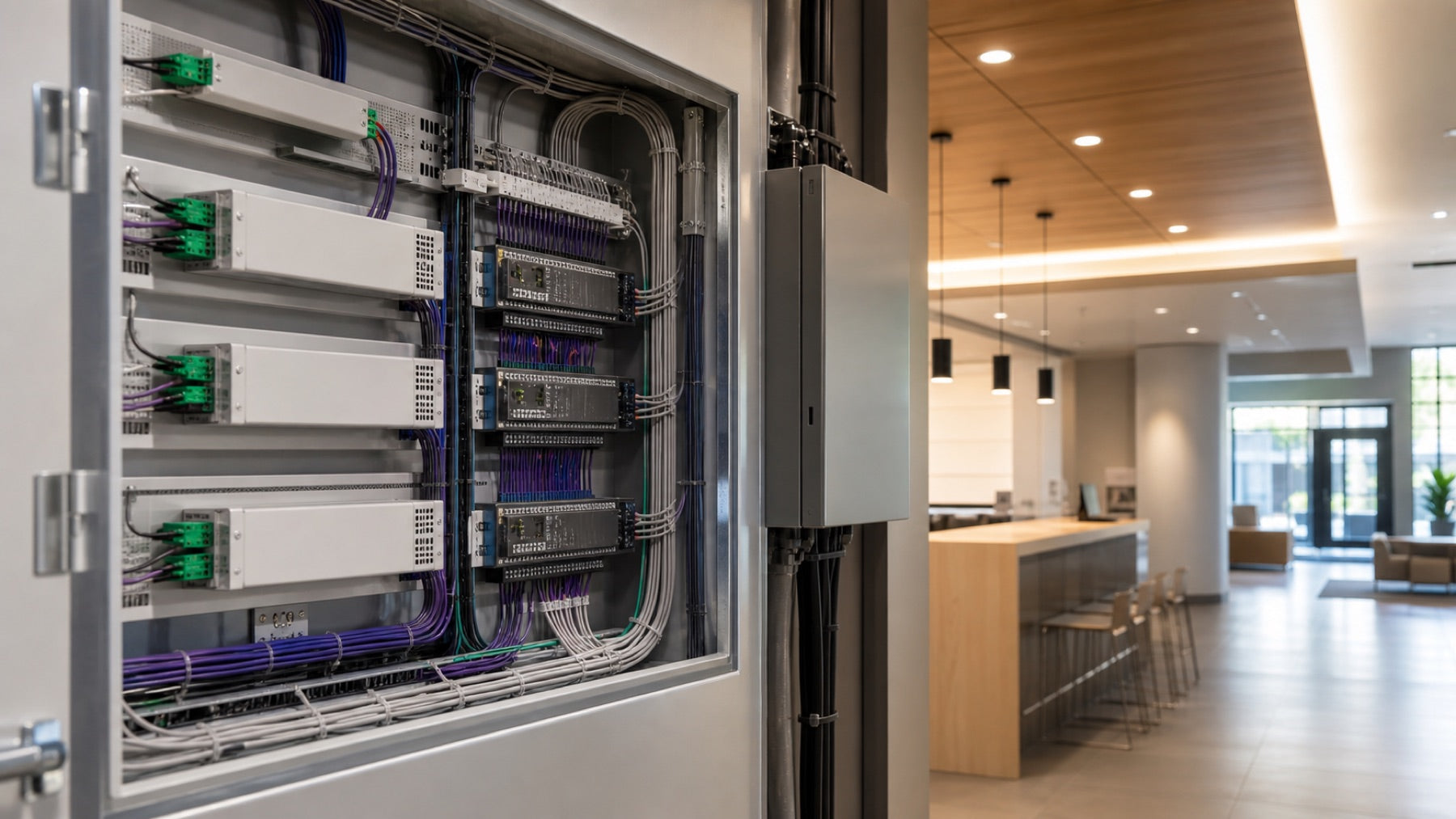

LED Dimming with Lutron Compatible Control Wire System
Lighting control wires are not standard fixture power wiring. It covers 0-10V LED dimming, commercial lighting control panels, Lutron QS/HomeWorks class links, window coverings and shading systems. The conductor is to control conductors, shield communication wire pairs, flame retardant levels and brand word compliance boundaries.
0-10V Dimming can be accessed from the 18/2 LED Dimmer Control Cable; Lutron class compatible control lines require separate planning of composite structures such as 18/2 + 22/2 shielded. Strong and weak current paths, ceiling space and equipment manual requirements must be confirmed in advance.
Recommended Cable
18/2 LED Dimmer Control Cable; Lutron class compatible composite cable upon project inquiry and real structure confirmation.
Applicable scenarios
Commercial lighting, office retrofits, cabinet lights, linear lights, warehouse lighting, building automation and shade control.
Underground Utility Locating system
Rather than providing power to equipment, tracer wire allows underground non-metallic pipelines to be located in the future. The complete system includes the tracer body, waterproof connector, ground/anode, test station, access point, marker post, inspection record and color identification.
Tracer Wire is laid simultaneously along non-metallic pipelines, test points are reserved at strategic locations, and colors are selected according to the purpose of the pipeline. Residential, irrigation and small contractor scenarios can first be understood from 14 AWG pure copper tracer wire; municipal, gas, HDD and other projects must separately confirm higher strength structures and accessories.
Recommended Cable
14 AWG Blue / Yellow / Red / Green / Orange / Purple Tracer Wire; waterproof connectors, test points and labels replenished by item.
Applicable scenarios
Underground water pipes, gas pipes, irrigation pipes, communication pipes, private line maintenance, minor municipal maintenance and yard improvements.
Security alarm and access control system wiring
Security Cable is not a single roll 22/4, but a system cabling ecosystem for residential alarms, commercial access control, OSDP upgrades, outdoor gates and noisy environments. The solution should cover the controller, card reader, electric lock, door sensor, REX, alarm panel, sensor, power box and fire alarm release interface.
Separate the number of conductors, shielding, supply wire sets, and signal wire sets by device type. Door sensors, PIRs, alarm panels and card readers cannot be judged only by color, but must be confirmed according to the controller manual, cable path, distance and outer jacket rating.
Recommended Cable
Security, Sound & Alarm Cable, Access Control Composite Cable, OSDP/RS-485 direction professional wire.
Applicable scenarios
Residential alarms, rental property security, small warehouses, office access control, outdoor gates, card readers and sensor extensions.
Fire Alarm Cable fire alarm system wiring
Fire Alarm Cable is part of a life safety system and must be expressed in accordance with FACP, Equipment Manual, Project Drawings, NEC/NFPA and AHJ requirements. The point is not to "one size fits all" but to clearly distinguish between SLC, IDC, NAC, Class A/B, shielded wire and cable class boundaries.
The fire alarm cable must first verify the certificate, jacket marking and applicable grade. FPLP, FPLR, FPL, shielded/unshielded, solid/stranded, 18/2, 18/4, 16/2, and 14/2 must be consistent with the actual certificate. Ordinary security cables cannot be packaged into fire alarm wires.
Recommended Cable
Fire Alarm Cable, FPL/FPLR/FPLP direction products; confirm item by item according to the authentic certificate, jacket marking and packaging label.
Applicable scenarios
Fire alarm control panels, smoke detectors, manual pull stations, audible and visual alarms, SLC, NAC, light commercial renovations and life safety low-voltage cables.
Outdoor Irrigation and Low Voltage Yard System Wiring
Outdoor low pressure systems are commonly found in sprinkler controllers, valve boxes, solenoid valves, rain sensors, yard maintenance and low-voltage outdoor equipment. The key issues are the number of partitions, common lines, spare conductors, outdoor environment, waterproof connectors and maintenance labels.
The path from the controller to the valve box must first confirm the number of partitions, spare conductors, connector locations and maintenance space. Sprinkler Wire should select the conductor count according to the number of valves, common lines and expansion needs, and outdoor connectors should be well waterproofed and labeled.
Recommended Cable
Sprinkler Wire, Tracer Wire, Outdoor Watertight Connectors, Valve Box Labels and Test Tools.
Applicable scenarios
Residential irrigation, multi-zone sprinklers, rain sensors, valve box controls, yard maintenance and outdoor low-voltage auxiliary lines.
