Project scenario

What does this solution solve?

Offices, schools, and light commercial spaces may have multiple lighting zones, sensors, low-voltage control panels, and dimming drivers. The goal of the system is to incorporate lighting control lines into project-level label, path, and level management. Confirm the equipment and boundaries first, then determine the cable path, recommended wires, wiring key points, construction checks and reference materials to reduce wrong cable selection and callbacks.

Visual Plan Map the system first, then choose the cable

Start with the system layout, then confirm the cable specification. You can check equipment, paths, termination, testing and acceptance issues together before ordering or requesting a quote.

Code Reference Leviton 0-10V dimming overview Whenever the text discusses listings, cable ratings, or acceptance boundaries, refer to this authoritative source. Manufacturer / Industry Reference Lutron QS Link cable document When talking about device terminals, system topology or debugging methods in the text, refer to the manufacturer/industry information. Product Page View VS-D02-WH-1000 product page After reviewing the system logic, open the matching SKU page to confirm wire gauge, color, length, and ordering details. Custom Solutions Submit Project Request When unsure of distance, environment, or listing level, submit device model, photo, length, and purpose.

System Layout

Relationship from device to cable path

This diagram shows equipment relationships, cable paths, test points, and maintenance boundaries; actual construction is subject to equipment manuals, local codes, project drawings, and licensed professional judgment.

Building lighting control panel and multi-zone dimming system system wiring and construction logic diagram — This system diagram shows equipment relationships, cable paths, test points, residential/commercial selection logic, and service boundaries. Actual installation must follow equipment manuals, local code, project drawings, and AHJ requirements.

01 Confirm System Equipment

Lighting control panel, occupancy sensor, daylight sensor, relay/dimming module, 0-10V LED driver, BMS/BAS interface.

02 Plan the Cable Route

From the control panel to each area sensor, relay/dimming module or driver; some points are controlled by 18/2, and some points require low-voltage communication lines or manufacturer-specific lines.

03 Match the Recommended Cable

18/2 LED dimmer cable, 18/4 control cable, 22 AWG shielded twisted pair or special composite line, determined according to the system brand and drawings.

04 Check Wiring Priorities

Commercial projects focus on system manufacturer requirements, plenum/riser levels, line-voltage and low-voltage wiring separation, wire number labels and commissioning records.

How the System Works

The operating logic of the building lighting control panel and multi-zone dimming system is: the head-end device provides power supply, control, communication or supervision, the cable sends the signal to the field device, and finally the closed loop is completed through test points, labels and records. From the control panel to each area sensor, relay/dimming module or driver; some points are controlled by 18/2, and some points require low-voltage communication lines or manufacturer-specific lines.

End-User and Project Selection Logic

Terminal selection focuses on confirming 0-10V polarity, driver compatibility and ceiling path; the project teams must be confirmed according to the control panel, partition, BMS/BAS, plenum/riser and manufacturer's system cable structure.

Installation and Commissioning Logic

The construction focuses on line-voltage and low-voltage wiring separation, polarity, shielding continuity, drain wire processing, terminal labels, driver dimming mode, loop zoning and commissioning records. Dimming wires are not lamp power supply wires, nor are they any replaceable communication wires. When debugging, conduct continuity/short circuit check first, then conduct voltage, voltage drop, communication or functional tests, and record the results.

Troubleshooting and Compliance Boundaries

Users can confirm whether the driver model, controller type, and low-voltage wires are loose; when it comes to line voltage, commercial control panels, shade power panels, or communication failures, leave it to professionals.

System Equipment

Lighting control panel, occupancy sensor, daylight sensor, relay/dimming module, 0-10V LED driver, BMS/BAS interface.

Cable Route

From the control panel to each area sensor, relay/dimming module or driver; some points are controlled by 18/2, and some points require low-voltage communication lines or manufacturer-specific lines.

Recommended Cable

18/2 LED dimmer cable, 18/4 control cable, 22 AWG shielded twisted pair or special composite line, determined according to the system brand and drawings.

Wiring Notes

Commercial projects focus on system manufacturer requirements, plenum/riser levels, line-voltage and low-voltage wiring separation, wire number labels and commissioning records.

Project Note

This guide supports product selection and project communication. It does not replace NEC/NFPA requirements, manufacturer manuals, project drawings, AHJ direction, or licensed electrician/contractor judgment. Always verify jacket markings, listing documents, equipment terminals, and local requirements before installation.

Related Applications

What other similar scenarios is this solution suitable for?

Commercial lighting retrofits, 0-10V dimming, Lutron-like control links, wired shading, office multi-zone lighting, sensors and building automation interfaces.

Solution Details

Full Project Context and System Boundaries

**System Relationship Diagram** Put field devices, cable paths, recommended wires, and maintenance points into the same visual to understand the system before proceeding to selection.

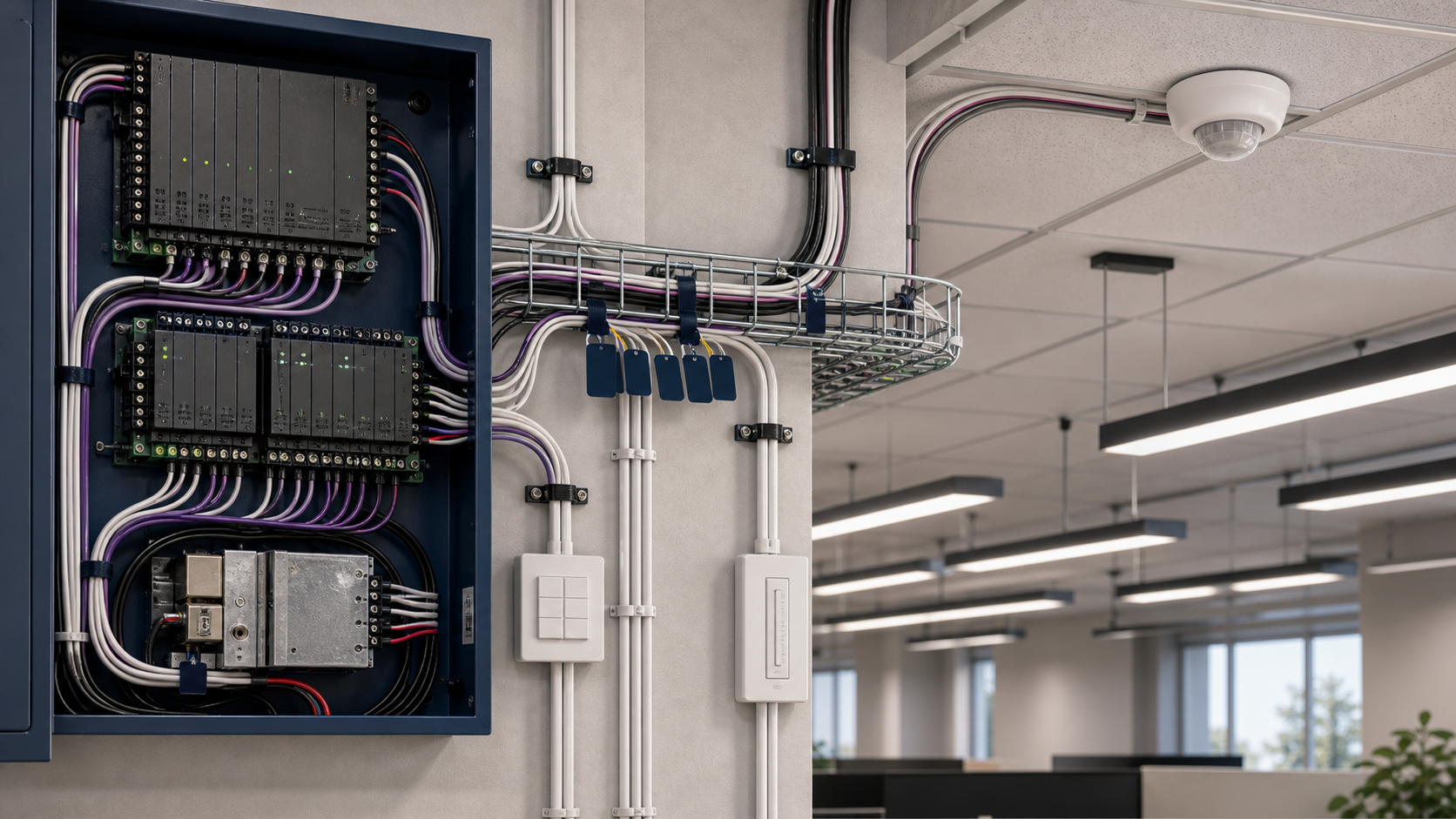

**Jobjobsite and Cable Route** Offices, schools, and light commercial spaces may have multiple lighting zones, sensors, low-voltage control panels, and dimming drivers. The goal of the system is to incorporate lighting control lines into project-level label, path, and level management.

**Define the System Boundary** Put the lighting control panel, occupancy sensor, daylight sensor, relay/dimming. into the same relationship diagram, first confirm the equipment, and then confirm the wires.

Confirm the cable specification, installation path, product documents, and local codes before ordering or installation.

System Diagram

Visual Guide from Equipment to Cable Route

**System Connection Diagram** Use diagrams to first identify head-end devices, field devices, cable paths, test points, and maintenance boundaries.

**Field Route Mapped to Diagram Nodes** From the control panel to each area sensor, relay/dimming module or driver; some points are controlled by 18/2, and some points require low-voltage communication lines or manufacturer-specific lines.

**Service Points and Risk Boundaries** Each line should be able to explain the starting point, end point, purpose, specifications, termination method and post-inspection location.

Confirm the cable specification, installation path, product documents, and local codes before ordering or installation.

Cable Selection

Select cable by specification, environment and risk

Cable and Product Entry When selecting, first check 18/2 LED dimmer cable, 18/4 control cable, 22 AWG shielded twisted pair or special composite cable, and determine according to the system brand and drawings.

**Route Drives the Spec** Wire gauge, conductor count, jacket rating, shielding structure and color must be determined along with the system path.

**Verify the Install Environment** In-wall, ceiling, outdoor, underground, and wet-location, equipment boxes and commercial spaces have different wire requirements.

1. Overview of recommended wires
This case recommends: 18/2 LED dimmer cable, 18/4 control cable, 22 AWG shielded twisted pair or special composite cable, determined according to the system brand and drawings. Selection should also consider the number of devices, path distance, voltage/signal, installation environment, future expansion and compliance boundaries. 0-10V commonly used 18/2 control cable; QS type links commonly use 18/2 power + 22/2 shielded data pair; longer or higher current shade scenarios may require 16/2 power + 22/2 shielded. Commercial projects prioritize confirmation of CMP/CMR, CL2/CL3, wire pairs, voltage drops, color identification and project drawings. 2. Specification selection table
- 18/2: 0-10V dimming control pair cannot be used as a line-voltage fixture power wiring. - 18/2 + 22/2 shielded: Common composite structure orientation for QS class control links. - 16/2 + 22/2 shielded: Structural orientation for shaded motors or higher current scenarios over long distances. - 22 AWG shielded twisted pair: Data or communication must maintain the wire pair structure. - Colors such as purple/pink/grey are used for identification, but the final determination is based on the device terminals. 3. Conductor and conductor count logic
The brand advantage of VOLTIC STONE is that it uses pure copper conductors and does not reduce specifications. The value of true-gauge copper is not a marketing slogan, but more stable termination, more controllable voltage drop, more consistent wire drawing and stripping experience, and easier jacket markings and specifications easier to verify by project personnel. More conductors are not necessarily more professional, but insufficient conductors will definitely lead to callbacks. When selecting, you should first list all the terminals required by the current equipment, plus at least one or two for future spares. Professional projects should also be reserved according to the drawings. 4. Jacket rating and installation space
The same wire gauge may require different jackets and listing levels in different spaces. The requirements are different for ordinary wall, riser, plenum, outdoor, wet area, direct burial, underground pipes, mechanical space, and ceiling return air space. Don't just look at the AWG and conductor count, but also check whether the cable jacket identification, packaging label, datasheet, listing document and installation environment are consistent. 5. Colors and labels
Color is an aid, not the specification itself. Low-voltage cables commonly use red, white, green, yellow, blue, brown, black, orange, purple and other colors to help terminal identification; The color of the tracer wire is often used to assist in identifying underground facilities according to APWA customs; the lighting dimming line is often purple/gray or purple/pink for identification; the fire alarm cable is often sheathed in red. However, wiring cannot be based solely on color during construction, but must be based on terminal markings, drawings and equipment manuals. 6. Length and packaging recommendations
End users often focus on lengths such as 50ft, 100ft, 250ft that are easy to purchase and handle; electricians, contractors and distributors, supply partners are more concerned about 500ft, 1000ft, reel packaging, sequential length markings, jacket marking, batch numbers and outer box labels. When purchasing, a reasonable margin should be added based on the actual path, and the color, length, and use should be recorded on the project label. 7. It is not recommended to choose this way
- Do not substitute regular indoor wire for wire requiring direct burial, wet location, UV or plenum/riser. - Do not use low-voltage control wires for 120V or other line voltage supplies. - Do not write security cable as fire alarm cable unless the actual cable jacket marking and certificate clearly support it. - Do not promote ordinary multi-conductor cable as OSDP/RS-485 dedicated cable unless there are truly shielded twisted pairs and appropriate construction. - Do not mistake Sprinkler Wire for Tracer Wire, and do not mistake Tracer Wire for valve control wire. - Do not write strong promises such as UL Listed, FPLP, CMP, HDD rated, OSDP certified, etc. without a certificate. 8. Product verification before placing an order
After entering the corresponding Product Line, first check the wire gauge / conductor count, color, length, jacket rating, shielding structure, cable jacket identification and packaging information. Understand the system first, then choose wire gauge, color, length and quantity; if the project conditions are uncertain, you can submit photos of the equipment, distance, environment and usage for confirmation. 9. Turn selection into purchasing decision
Product collections, single products, specification sheets, FAQs, contact us and solution customization forms need to be connected to each other. After understanding the system logic, you can enter the product page to select the color and length; if you are not sure, enter the solution customization form to submit the device photo, distance and usage. This can reduce the cost of mispurchases, returns, callbacks and later inspections. 10. Order review list
- Verify that the AWG, conductor count, color, and jacket rating in the product title match the actual item. - Confirm that there is enough margin in length. Do not buy based on straight-line distance only for long distances or multi-turn paths. - Confirm whether the wire is power supply, control, communication, alarm supervision, positioning signal, or multiple wire combinations combined in one jacket. - Determine if waterproof connectors, labels, junction boxes, access points, ground rods, terminals, heat shrink tubing or test tools are required. - Confirm that the listing terminology, jacket rating, shielding structure and installation environment are consistent, and do not mix wires with similar appearances across systems. - Save orders, equipment models, terminal photos and cable path records to facilitate future repurchases and support.

Installation Checklist

Start-up, termination, testing and delivery verification

Building lighting control panel and multi-zone dimming system construction verification with drawings — Take photos, mark, cut off power, and check terminals before starting work; keep test records and cable paths after completion.

**Before and After Installation** Take photos, mark, cut off power, and check terminals before starting work; keep test records and cable paths after completion.

**Test Against the System Diagram** Continuity, short circuit, voltage, voltage drop, communication, function and recording are completed one by one according to the path.

**Turnover and Long-Term Service** Save device models, cable numbers, connector locations, test results and repurchase specifications to reduce subsequent callbacks.

Confirm the cable specification, installation path, product documents, and local codes before ordering or installation.

Reference

References and professional information

Use these references to check code context, equipment requirements, cable selection, and installation decisions. For inspected commercial work, fire alarm, underground utility, public works, or line-voltage boundaries, follow local code, manufacturer documentation, AHJ direction, and licensed professionals.
